13MM Small Electric 12V DC Gear Motor Title:
13MM Small Electric 12V DC Gear Motor Mini 050/030 Geared Motors For Smart Lock And Toys
13MM Small Electric 12V DC Gear Motor Description:
- Mootor speed :2rpm -2000rpm
- Rated torque :0.1kgf.cm-5kgf.cm
- Wide Speed Range: The motor offers a speed range of 2-2000 RPM, making it versatile for various applications, including electric bicycles, home appliances, and robots.
- Voltage:DC1.5V-24V
- Brush Type:Metal brush or Carbon brush
- Gearbox Material :Metal gearbox ,Copper ,Steel or Customized
-
Gearbox size :13mm Micro Gearbox Match Motor : DC FF-030 FF-050 Brush Motor
- Shaft Material : Copper ,steel or carbon steel
-
SHAFT TYPES:
-
Out shaft standard as follows,also can customerized due to the user drawings
-
Round Type :DIA3mm. 4mm. 5mm
-
D-cut Type: DIA3-D2.5 DIA4-D3 etc
-
Screw Type: M3 M4 M5 Serial
-
Trape Type I-cut Type: DIA3-I2 DIA4-I3
-
Other Type: Shaft with a hole etc
- Cost-Effective Solution: This product is a cost-effective solution for industries and hobbyists alike, offering a balance of performance and affordability
-
Customizable Options: can be customized according to the user's request, allowing for flexibility in design and integration.
13MM Small Electric 12V DC Gear Motor Key attributes:
Speed(RPM)
Customized 2rpm-1000rpm
Continuous Current(A)
Customized
Shaft type
Round ,D-cut,Screw ,Trape or Others
Place of Origin
Guangdong, China
Use
Locks ,toys, robots, and automated appliances
Motor Type
FF-030/FF-050 micro motor
Commutation
Metal Brush /Carton Brush
Protect Feature
Exposed Gearbox
Product Name
13mm Spur Gear DC Motor
Gear Materials
Metal gearbox ,copper ,steel ect
Gearbox Diameter
φ13mm gearbox
Gears Materials
Metal ,copper ,steel ect

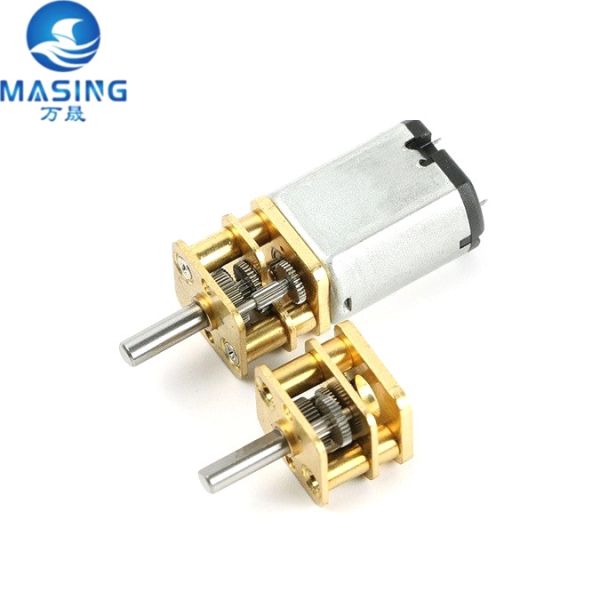

13MM Small Electric 12V DC Gear Motor Product Photo:

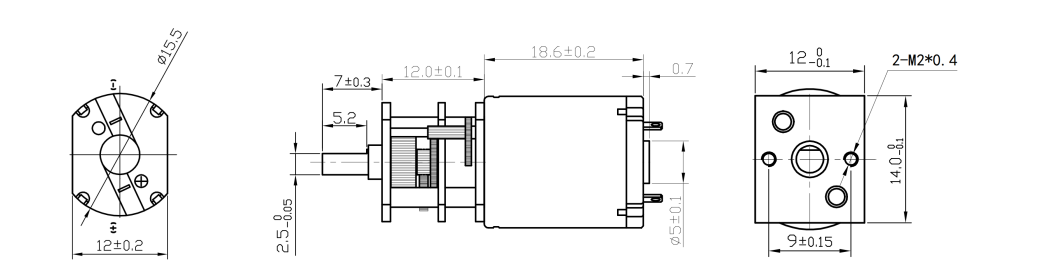

13MM Small Electric 12V DC Gear Motor Product Spec:
Micro Motor FF-030/FF-050 with Gearbox DC Gear Motor Typical Applications:
Electric Bicycle, Home Appliance, Electronic Door Lock,Smart Home ,Appliance Smart Robot ,Electric Toys,3D printing,Smart cabinet locks
Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.
| Motor Technical Data | | | | | | | | | | | | | |
Motor Model | Voltage | No-load | On-load | Stall | Efficiency | Direction | Shaft Diameter | Wire Length |
| Speed | Current | Speed | Current | Torque | Torque | Current |
| V | rpm | | rpm | A | mN·m | mN·m | A | % | / | mm | mm |
| MS-GM14-030PA-150-12105 | 12 | 105±10% | ≤0.070 | 90±10% | ≤0.150 | 49 | ≥245 | ≤1.0 | 35.26 | CW/CCW | φ3 | / |
| MS-GM14-030PA-384-0522 | 5 | 22±10% | ≤0.050 | 19±10% | ≤0.120 | 58.8 | ≥343 | ≤5.2 | 33.97 | CW/CCW | φ3 | / |
| | | | | | | | | | | | | |
| | | | | | | | | | | | | |
| | | | | | | | | | | | | |
Packaging and delivery:
Packaging Details
Strong Carton 400pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
37X27X24cm
Supply Ability:
Supply Ability
100000 Piece/Pieces per Month
Lead time:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
Maximum order quantity: 1piece
Sample price: $10/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,
5G communication,Smart home
Q1:What's the price?
A1: We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.
Q2: What's the MOQ?
A2: We try to meet every client's requests and don't want to disappoint our clients.
So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to
confirm it.
Q3: What's the delivery time? A3: At the first we have an schedule,the earlier you place order,the fater we finish the production. In the slack season,we can make sure the delivery time is by one month.
In the busy season,we need more than one month if your quantity is large.
The most important,we can provide free overtime prodution if your order is really urgent.
Q4:Can you send some samples before the order?
A4: Yes of course,we must send the sample to confirm the quality with you first.UPS,TNT,FEDEX or DHL are all available.
Q5:Can you make our logo on the products?
A5:Certainly,logo is easy as most of our products are customizable.So logo in usually logo is necessary.It can be labeled on the motors.
Q6: How to deliver the goods?
A6: We will deliver via Express such as UPS,FEDEX,DHL,TNT etc.
It is fast and safety.If goods quantity is large,the shipping cost will be cost-effective
